Vacuum Insulations, Double Wall Vessels and Pipelines

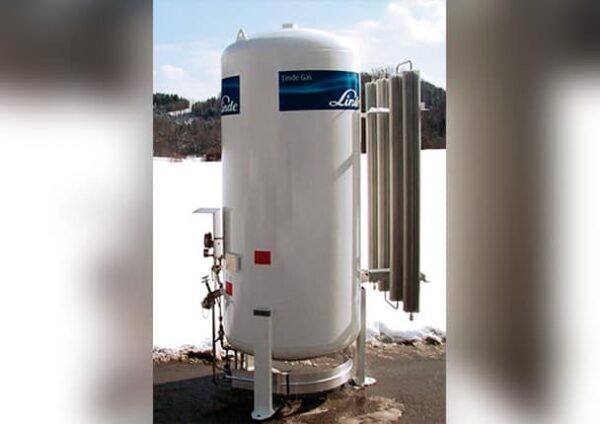

Application Example Vacuum Insulation of liquid gas tanks

Vacuum insulation of liquid gas tanks protects the liquified gas from the influence of ambient heat.

The vacuum envelope effectively prevents heat conduction between the tank and its environment.

Challenge

To assure correct functioning of the insulation and detect leakage in the gas tank or the outer shell as soon as possible, the insulating vacuum is regularly checked.

Failure of the vacuum insulation runs the risk of the contents heating up with consequent rise in pressure.

Solution

Using a VD84 vacuum meter with detachable sensor head VSP842 the insulating vacuum of a gas tank can be checked easily and quickly. Each gas tank is equipped with a separate sensor, which remains fixed at the insulation envelope. The vacuum meter is periodically connected to those sensors so that the vacuum can be checked.

VSP841 | VSP842
